python

Using relational databases

In this module you will learn how to use a relational database in a Python program.

Before you start, you should already have mastered the basic concepts of relational databases (tables, fields, records, primary and foreign keys, datatypes). You should also be able to express database queries and data transformation operations using the SQL language. Furthermore, you need to be able to design a small database structure and set up a database on a database server.

This module uses the MariaDB database. However, the process is similar when using other databases.

Database drivers

To use a relational database with your own program requires you to install a database driver.

On this course we are using Python programming language and MariaDB database manager. The required database driver is a software between MariaDB and your own Python program that enables communication between the two programs.

The database driver is needed already when establishing a connection to the database. Once the connection has been established, the driver allows for SQL statements (such as SELECT statements) to be sent to the database server. Furthermore, the driver converts the result sets to corresponding Python data structures.

The correct database driver depends on both the chosen database manager software and the programming language used. Thus, we need a MariaDB-compatible driver for Python language. As MariaDB is compatible with MySQL database manager, we can install a MySQL driver for Python.

You can proceed in one of the two ways presented below. Choose one option.

  1. In PyCharm, click View / Tools Windows / Python Packages. Type connector as a search term, and select the mysql-connector-python option. Press Install.
  2. Alternatively, you can install the driver by following the instructions on this website: https://dev.mysql.com/downloads/connector/python/.

The material here assumes that we are using a MySQL driver due to easy installation and ease of use as well as the long history of MySQL drivers (the first MariaDB driver was not published until 2020). Based on this, following option 1 is recommended. If you prefer installing the MariaDB Connector/Python driver instead, you can do so by following the instructions on this website: https://mariadb.com/docs/clients/mariadb-connectors/connector-python/install/.

Once you have installed the MySQL driver, you can test that it works by writing a program with this single import statement:

import mysql.connector

Notice that if you are using the MariaDB driver, the import statement that imports the library is different than the one presented here. There may also be slight differences in how the driver works compared to the MySQL driver.

If the driver was successfully installed, nothing happens. If there were problems in the installation, you get an error message. Repair the installation if needed.

During the installation, you may see an error message saying that a library called Microsoft Visual C++ runtime is missing. Should this happen, go to the Microsoft’s download page at https://www.microsoft.com/en-us/download/default.aspx. Locate the missing library with the Search functionality, and install it. You can use the library details in the error message as search terms.

Establishing connection to the database

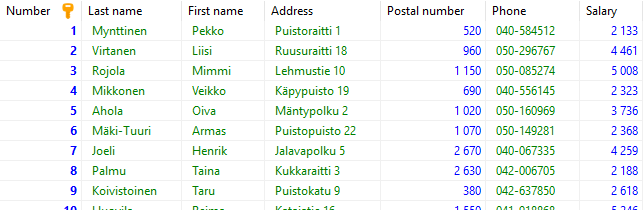

Let’s look at an example database called people. The database contains a table called Employee. The following image shows the structure and contents of the table:

Data example from the Employee table

The primary key of the table is the Number field. For simplicity, the database in the example only has one table.

We will extend the program so that it can establish a database connection to the MariaDB server:

import mysql.connector

connection = mysql.connector.connect(
         host='127.0.0.1',
         port= 3306,
         database='people',
         user='dbuser',
         password='pAs5w_0rD',
         autocommit=True
         )

The connection is established by using the connect method of the database driver. Let’s take a closer look at the parameters of the method:

If the program still does not produce any visible output when you run it, everything is working as it should: the driver has been installed and the database connection has been established successfully.

Search inquiry and processing result sets

Next, we will write a program that uses a database. The program asks the user for a person’s last name, searches matching employee records from the database and presents each employee:

import mysql.connector

def get_employees_by_last_name(last_name):
    sql = f"SELECT Number, Last_name, First_name, Salary FROM Employee WHERE Last_name='{last_name}'"
    print(sql)
    cursor = connection.cursor()
    cursor.execute(sql)
    result = cursor.fetchall()
    if cursor.rowcount >0 :
        for row in result:
            print(f"Hello! I'm {row[2]} {row[1]}. My salary is {row[3]} euros per month.")
    return

# Main program
connection = mysql.connector.connect(
         host='127.0.0.1',
         port= 3306,
         database='people',
         user='dbuser',
         password='pAs5w_0rD',
         autocommit=True
         )

last_name = input("Enter last name: ")
get_employees_by_last_name(last_name)

Running the program produces the follwing output:

Enter last name: Fernsby
SELECT SELECT Number, Last_name, First_name, Salary FROM Employee WHERE Last_name='Fernsby'
Hello! I'm Margaret Fernsby. My salary is 5008 euros per month.
Hello! I'm Haven Fernsby. My salary is 4280 euros per month.
Hello! I'm Ash Fernsby. My salary is 2158 euros per month.

The database query has been programmed inside the getEmployeesByLastName function.

The SQL statement for the query is first written into a string variable that has been named sql in the program code. When writing a program, it is recommended to check the operation of an SQL query in a database editor (such as HeidiSQL). Only when the query works, it should be embedded into Python code. In this case the query is given the value of the last name from the parameter variable.

Once the sql variable is ready, it should be output to the console using a print statement. A query rarely succeeds on the first try and troubleshooting is easier when the query is printed out to be visible. Once the query is deemed working, the printing statement can be removed or commented out by adding a comment character (#) at the beginning of the line.

Once the query is finished, a cursor object is requested from the database connection object. The cursor is used to forward the SQL statement to the database server and look at the result set. In the example code the cursor is requested as follows:

cursor = connection.cursor()

Later the cursor is asked to execute the SQL statement in the string variable:

cursor.execute(sql)

Then the result set is requested from the server:

response = cursor.fetchall()

The method call fetches the entire result set. In case the result set is exceptionally large, it is be possible to fetch the records in smaller parts using the fetchmany and fetchone methods. This is rarely necessary.

The result set stored in the result variable is a list structure where the elements are tuples. Each item in the outer structure (list) corresponds to one row in the result set. Each row is presented as a tuple where the items are the field values in the order they were written in the SELECT statement.

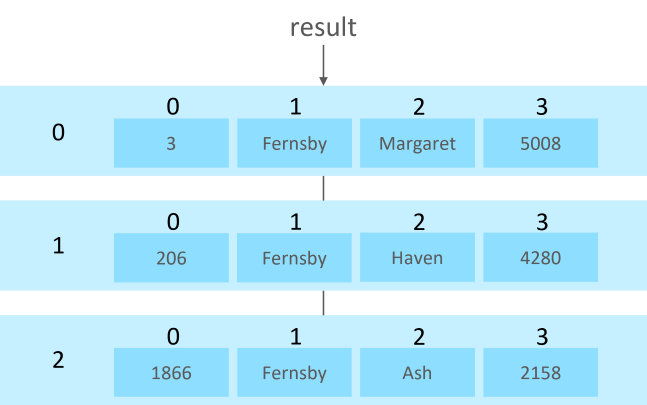

The result set of the example can be visualized as follows:

Result set as a diagram

After this the result set can be processed the same way as lists. In the example each row that corresponds to an employee is made into an employee object. The created objects are gathered in the employees object list that is returned as the return value of the method.

Data modification queries

Executing UPDATE, INSERT and DELETE statements that modify data is more straightforward than completing search queries. This is because there is no need to process a result set. With these operations the database server only returns the information of how many records were modified.

Let’s take a look at changing an employee’s salary as an example. Notice that in this example the salary value in the database is updated directly. For a single employee, the change could alternatively be done so that the employee record would first be fetched from the database, the change would be done on the Python level to the object and finally the updated state of the object would be updated to the database. However, this is not done in the example below.

Let’s write another global function for updating the salary information. The function builds and executes the corresponding UPDATE statement:

def update_salary(number, new_salary):
    sql = f"UPDATE Employee SET Salary={new_salary} WHERE Number={number}"
    print(sql)
    cursor = connection.cursor()
    cursor.execute(sql)
    if cursor.rowcount==1:
        print("Salary updated")

The main program is extended by adding a statement for reading input and a call to the function:

number = int(input("Enter number: "))
new_salary = float(input("Enter new salary: "))
update_salary(number, new_salary)

The function we added confirms that the change was made to the database:

Enter number: 2
Enter new salary: 3456
UPDATE Employee SET Salary=3456.0 WHERE Number=2
Salary updated

A successful update can be confirmed directly from the database by using a database editor.
